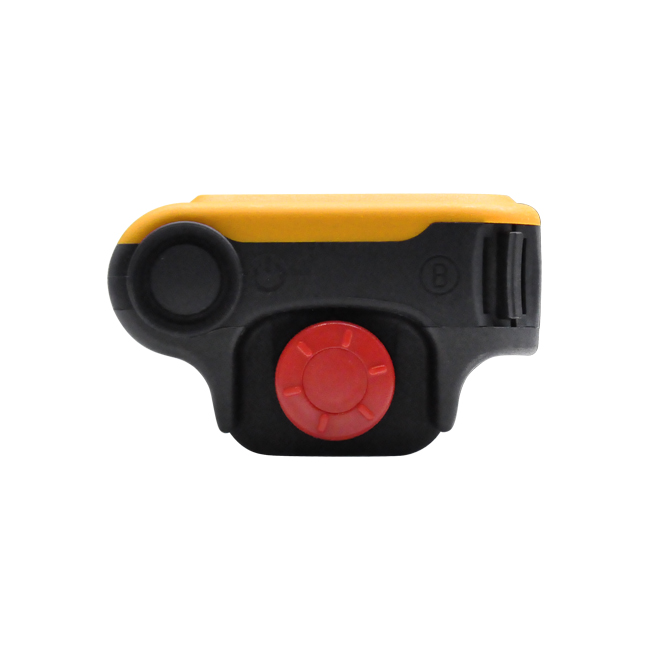

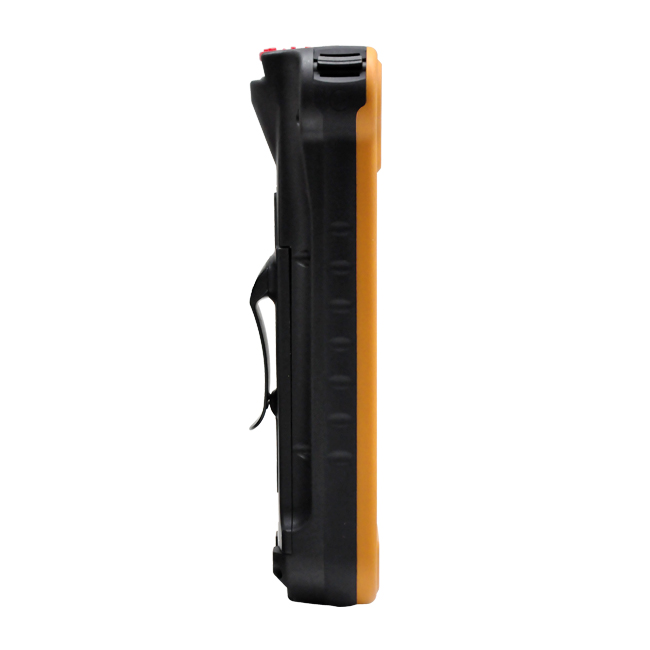

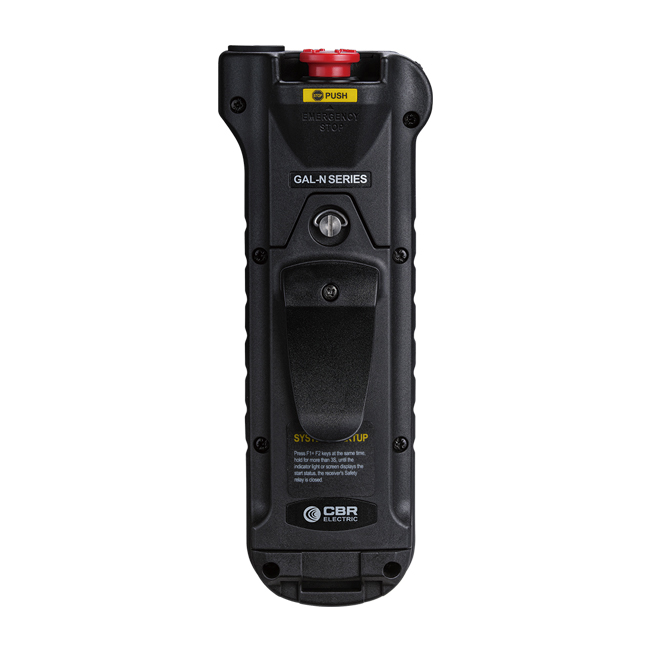

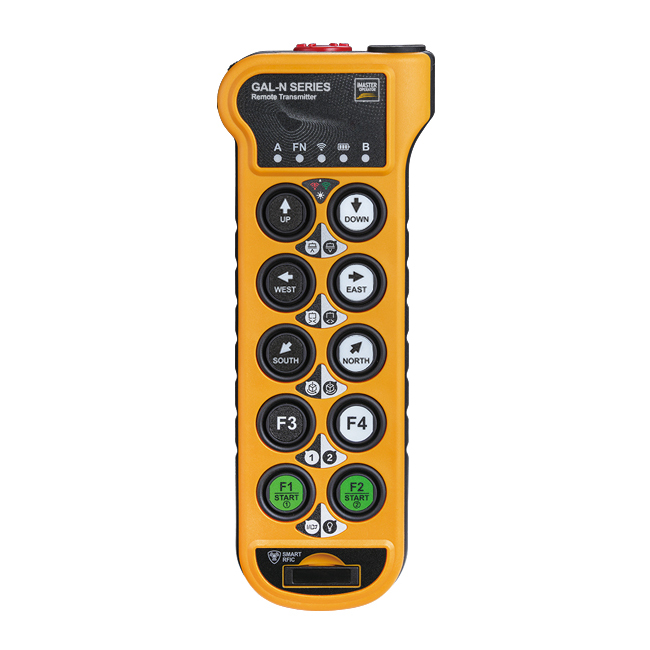

GAL-N-10S PRO
Safe and effective communication of frontline operation instructions
We listened attentively to the actual needs of frontline operators in the manufacturing industry for wireless transmitters, and then tailored them to the GAL-N series of transmitters. This is a sturdy, reusable, and powerful handheld transmitter that is not only portable but also easy to use. The GAL-N series is fearless of frontline challenges and can effectively execute the operational instructions of frontline personnel, perform wireless control of equipment accurately, while, ensuring the safety of frontline personnel. It adopts innovative PLL phase-locked loop communication technology, which can ensure the transmission of wireless command signals even in complex electromagnetic loops. It has first-class coverage, ensuring smooth wireless data transmission even in the edge area of signal coverage. The sturdy and durable design inside and outside can effectively cope with extreme environments, while the longer battery life supports multiple shifts of use. The GAL-N transmitter can assist frontline personnel in more confident and accurate control of equipment. It can effectively respond to on-site mutations and complex electromagnetic environment changes, helping frontline personnel complete tasks efficiently.
Long standby time, supporting multiple shifts of use Tool free,easy to replace battery
The production line staff have long shifts and often work overtime due to unexpected circumstances. They need a transmitter with an extended standby time. The standard battery can last for 120 hours, while the optional high capacity rechargeable lithium battery can last for over 180 hours, even for extended duty hours.
This ensures that employees will never worry about running out of battery and disconnecting in highly challenging environments. But all batteries will eventually run out of charge, so we also ensure that batteries can be easily replaced on-site without tools, and there is no chance of any luck in the frontline.
Our wireless transmitter has been carefully designed to work efficiently in harsh conditions.
→ Falling to the ground of Nirvana concrete
→ Temperature shock
→ Sand and dust
→ Drenched in rain
| Technical Parameters | |
| Real time performance | Real time control technology |
| Frequency control | PLLPhase-locked loop |
| Dedicated address code | 32bit >42billion |
| Control distance | >100m |
| A/B conversion function | Equipped with |
| Low voltage alarm | Audible and visual alarm (3.3-3.5VDC) |
| Malfunction alarm | Multiple combinations of sound and light alarms |
| Power saving protection | Automatic shutdown (Can be set for 0-30 minutes) |
| Transmitter antenna | Builtin |
| SMART RF IC Smart Card | ● Optional |
| Shell material | High strength engineering plastics |
| Communication method | Instant Messaging(RF-M4386-SI44/RF-EM4386-SI44) |
| Transmission frequency | 430~432MHz, 433.05~434.79MHz/25k |
| Transmitting power | ≤10mW |
| Operation form | Pushbutton single speed |
| Number of buttons | 10 |
| Selectionswitch | 3rd gear positioning with tactile feedback |
| Working power supply | 4.5V~6VDC(4 pcs of AA alkaline batteries) ● Optional rechargeable lithium battery(7.4V) |
| Working current | ≤30mA |
| Standby current | ≤0.5mA |
| Status display | LED*5 |
| EMS method | Push-pull emergency stop button |
| Size | 208 x 62 x 39.8mm. |
